Pavijet Mini Paver

Part #: Pavijet-MP
The compact Pavijet Mini Asphalt Paver is the most recent evolution in the asphalt finishing sector. The Pavijet MG7 is a completely hydraulic paver. It can be connected to any kind of skid loader with a minimum of 20 HP.
Details
Files

Pavijet Mini Asphalt Paver

The new compact Pavijet Mini Paver is the most recent evolution in the asphalt finishing sector.



skid steer paver



With an international patent, the Pavijet is the only paver able to fill with:

  • Gravel
  • Sand
  • Stones
  • Asphalt (hot and cold)
  • Concrete

The Pavijet can do many jobs, such as:

  • Patching roads
  • Cycle tracks
  • Sidewalks
  • Pavements
  • Parking lots
  • Driveways
  • Garden and park paths
  • Utility trenches
  • Sand in courtyards for self-locking bricks
  • Flat layers of concrete in worksites

The Pavijet can also bypass any obstacle in the way, like advertising signs, trees, etc. thanks to the retractable screed.



Easy to use and to transport:

  • The Pavijet MG7 is a completely hydraulic paver. It can be connected to any kind of skid loader with a minimum of 20 HP (15 kw).
  • The attachment is mechanical and the hydraulic connection is done with quick connects.
  • The Pavijet can be loaded and unloaded from the truck by the same skid loader.
  • Thanks to its small dimensions, the Pavijet is easy to use and to transport.



Functions:

  • All the functions are hydraulic (auger, screed lifting and lowering, telescopic screed, hopper's opening and closing).
  • Because of the retractable hydraulic screed, the machine is very versatile and is able to avoid obstacles that may be in the way.
  • The Pavijet MG7 can be controlled from the skid loader and/or with a wireless remote control.
  • The wireless remote control allows the operator to have a complete view of the work in front of the machine.



Advantages:

  • Variable paving width from 7.87" to 74.80"
  • Compact dimensions
  • Low price
  • High paving speed, up to 82' per minute
  • Avoids obstacles along the way
  • Possibility to be load the hopper from the street
  • Can pave many different kinds of materials
  • Wireless remote controlled
  • Machine is completely hydraulic

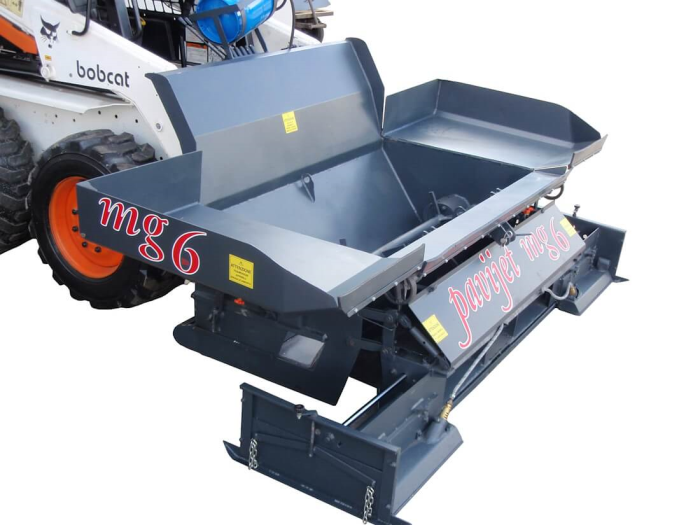

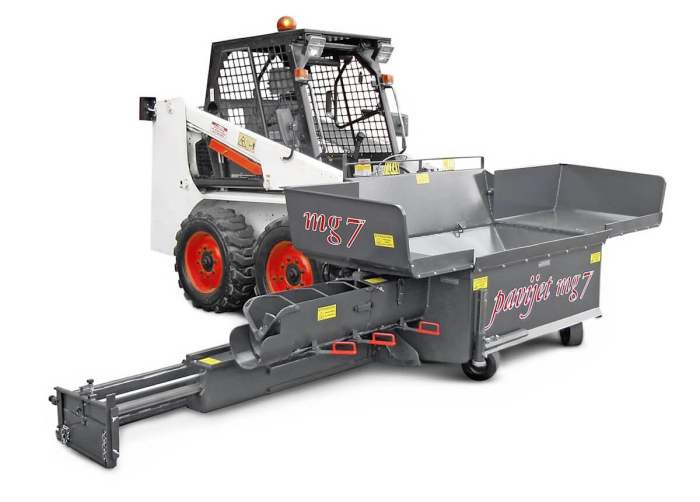

  MG7 MG6
 Direction of Travel Forward Reverse
 Paving Width 7.87"-74.80" 15.75"-90.55"
 Paving Height 1.97"-9.84" 1.97"-9.72"
 Hopper Capacity 49.44 cu.ft. 42.38 cu.ft.
 Paving Speed 82' /min 82' /min
 Oil Flow 15.85 gpm 15.85 gpm
 Hydraulic Pressure 2611 psi 2611 psi
 Unit Weight 1567 lbs 981 lbs
 Paving Material cold or hot cold or hot

   Click the "Files" tab above to download full specifications






* Please contact Duane Witmer at [email protected] for more information
