New Holland Telehandlers

Part #: NH-LMTELE
New Holland has models designed to meet customers varying demands. One is certain to become the ultimate material handling multi-tool for your applications.
Details

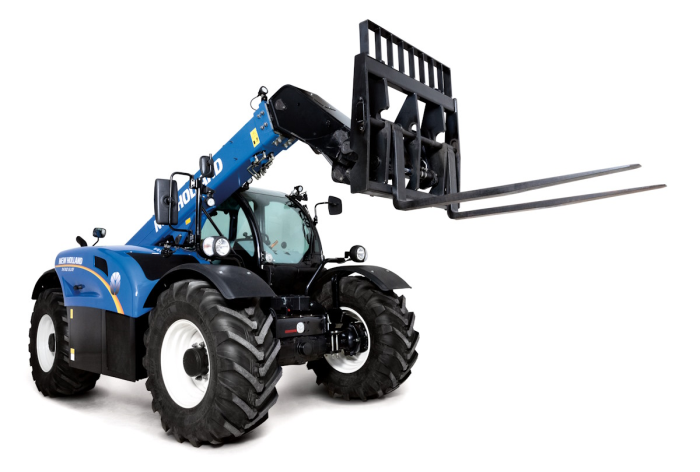

New Holland Telehandlers - LM Series

THE ULTIMATE MATERIAL HANDLING MULTI-TOOL

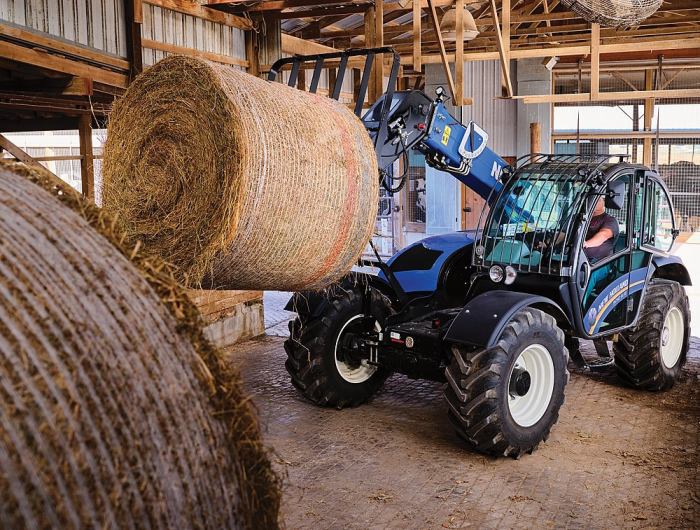

At New Holland, we listen to our customers. We understand the difference between operations requiring a telehandler with the reach to pick up, transport and stack large bales to those in need of a machine that sees daily use for livestock duties – and everything in between. New Holland has models designed to meet these varying demands. One is certain to become the ultimate material handling multi-tool for your applications.

FOUR MODELS FOR MULTIPLE APPLICATIONS

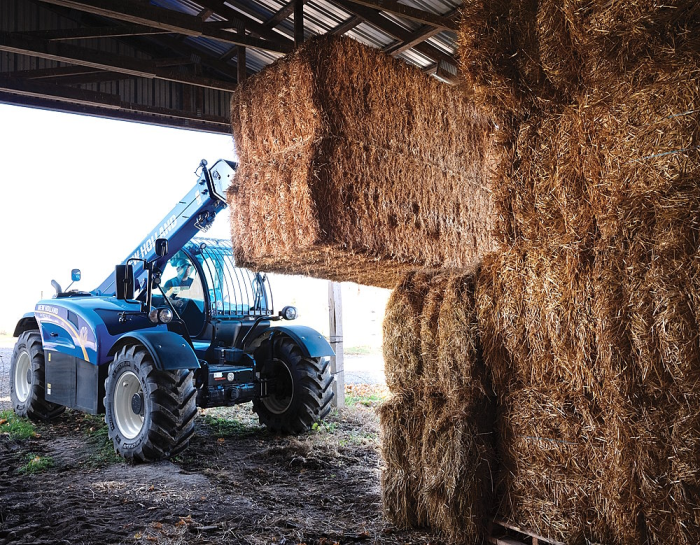

Choose from four New Holland large-frame telehandlers – the LM6.32, LM7.42 Classic, LM7.42 Elite or the LM9.35. Equipped with Tier4B 4.5-liter NEF engines, all provide responsive power and the reach to pick up, transport and stack large bales and dozens of other applications. See which model is best for you.

LM6.32, LM7.42 CLASSIC AND LM9.35 - A STANDARD SPECIFICATION TO SUIT YOUR NEEDS

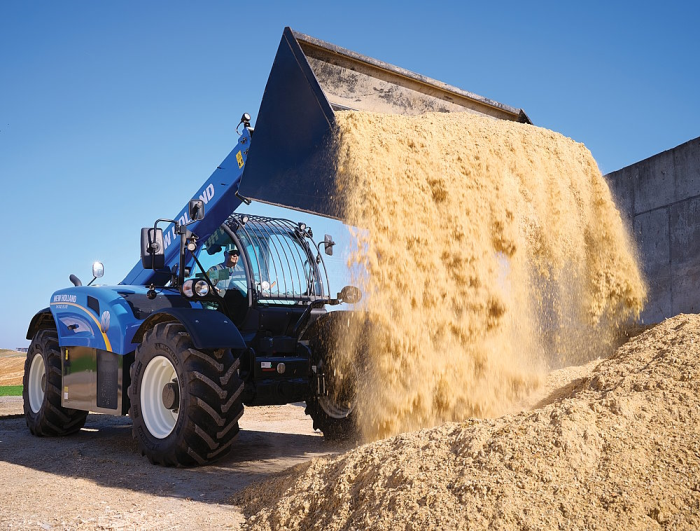

If you’re looking for a machine dedicated to scooping, stacking or loading with the standard comforts of an ag tractor, New Holland offers three affordable large-frame standard-configuration models that are the ideal choice for broad-acre, mixed farm and contract applications.

  • 130 max horsepower
  • 4F/3R powershift transmission with speeds up to 22.9 mph
  • 36.9 gallon-per-minute (gpm) variable displacement pump (31.7-gpm gear pump option available)
  • 3-mode steering system
  • Full-time 4WD and front limited slip differential

THE LM7.42 ELITE - ELITE POWER DELIVERS OPTIMUM PERFORMANCE

The LM7.42 Elite provides higher power, enhanced performance and deluxe comfort for demanding farm and contract operators who want a dedicated material handling machine for the most challenging applications.

  • 143 max horsepower
  • High power-to-weight ratio for heavy material handling tasks
  • 6F/3R powershift transmission with automatic speed selection for speeds 4/5/6, and speeds up to 23.7 mph
  • 36.9-gpm variable displacement pump hydraulic system operated via an armrest-mounted joystick
  • 3-mode steering system with automatic alignment
  • Full-time 4WD and limited-slip differential on both front and rear axles.



  LM6.32 LM7.42 Classic LM7.42 Elite LM9.35
 Lift Specifications
 Max Lift Height 20.6' 22.9' 22.9' 29.8'
 Max Lift Capacity 7054 lbs 9259 lbs 9259 lbs 7716 lbs
 Lift Capacity, max height 7054 lbs 5500 lbs 5500 lbs 3300 lbs
 Engine
 Type 4 Cyl - NEF Tier 4B common rail 4 Cyl - NEF Tier 4B common rail
 Max Power 130 hp 130 hp 143 hp 130 hp
 Displacement 274 in³ 274 in³ 274 in³ 274 in³
 Transmission
 Type PowerShift PowerShift PowerShift PowerShift
 Speed 4x3 4x3 6x3 Auto-Shift 4x3
 Hydraulic Cycle Times
 Lift /Lower 7.4 / 5.6 sec 6.7 / 5.2 sec 6.7 / 5.2 sec 7.4 / 5.6 sec
 Extend / Retract 5.5 / 3.7 sec 6.5 / 4.4 sec 6.2 / 4.5 sec 8.3 / 6.3 sec
 Bucket Dump / Bucket Crowd 3.1 / 3.2 sec 3.1 / 3.4 sec 2.8 / 2.9 sec 3.1 / 3.4 sec
