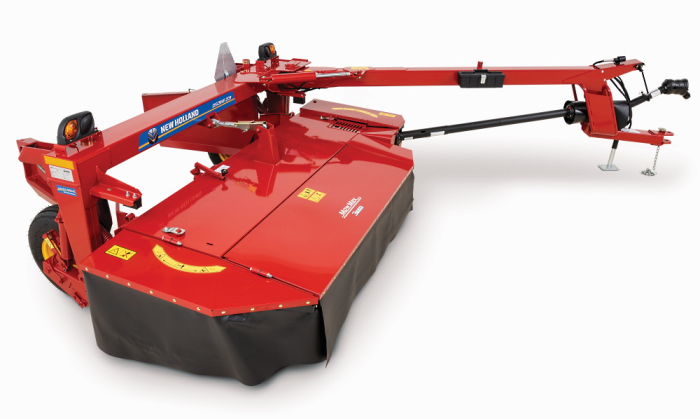

H7000 Series Discbine Side-Pull
Part #: H7000
Discbine disc mower-conditioners quickly turn standing crop into fast-drying windrows or swaths. They slice through thick, tangled, wet crops and mow through fire ant hills and gopher mounds without missing a beat. The New Holland Discbine line ranges from seven-disc models that cut a nine-foot swath up to 12-disc models that sweep through 16 ft. 3 in. at a time.
No matter what the cutting width, you have a choice of cheveron design rubber-roll or flail conditioning. You'll also get the proven performance and durability of the MowMax™ independent modular disc cutterbar with the added protection of shockPRO™ cutter-bar protection.

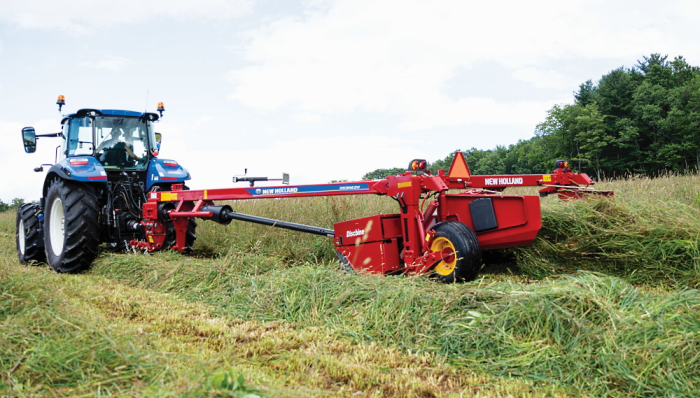

CLEAN AND RELIABLE MOWMAX™ CUTTINGH7000 side-pull Discbine® disc mower-conditioners mow cleanly and smoothly through tough conditions. Featuring the classic and reliable MowMax cutterbar, these Discbines have cutting widths of 9’ 2” and 10’ 4”. Like the newer MowMax™ II cutterbar, the classic MowMax cutterbar features the New Holland true modular design with ShockPRO™ disc drive hubs.
H7220 AND H7320The smallest models of the Discbine family, the H7220 and H7320, provide a 9’ 2” cutting width and narrow transport, which is ideal for mowing tight spaces and passing through narrow entrances. The H7220 features a chevron-design intermeshing rubber-roll conditioning system, while the H7320 comes with a LeaningEdge™ flail conditioner. The 540-rpm drive and low horsepower requirement mean you can mow and condition your crop for fast drying with as little as 65 PTO horsepower. A straight tongue with a clevis hitch is featured on both models.
|Model||No. of Discs||Cutting Width||Conditioning System|
|H7220||7||9' 2"||Rubber Rolls|
|H7230||8||10' 4"||Rubber Rolls|
|Model||# Discs||Cutting Width||Conditioning System||Tongue Design|
|H7220||7||9' 2"||Rubber Rolls||Straight Tongue|
|H7320||7||9' 2"||Flails||Straight Tongue|
|H7230||8||10' 4"||Rubber Rolls||Bent Tongue|
|H7330||8||10' 4"||Flails||Bent Tongue|
CONDITIONING ROLLS OR FLAILS
YOUR CHOICE OF PROVEN ROLL OR FLAIL CONDITIONING
CHEVRON INTERMESHING RUBBER ROLLSGentle chevron rubber intermeshing rolls provide full-stem crimping and cracking with a scrubbing action while handling the leaves of high-value feeds delicately, making it the ultimate solution for alfalfa and clover. This is possible because of the large 10.4-inch roll diameter, the rubber compound, the intermeshing fit and profile of the lugs. These features work together to grip the crop and generate an even flow of crop through the rolls to provide an even spread into fast drying swaths or windrows.
CHEVRON INTERMESHING STEEL ROLLSDurable chevron steel intermeshing rolls are designed for use with all crops, but show a real advantage in cane-type crops, grain forage crops and extra-tall grass crops. The chevron pattern of the steel lugs provides aggressive full-stem crimping, smooth crop flow, and even distribution into fast drying swaths or windrows. Rugged all-steel roll construction resists wear better than rubber, providing a long life even in highly abrasive conditions.
TORSION-BAR ROLL PRESSUREYear after year, New Holland’s torsion-bar roll-pressure system is proven to be the most effective design for delivering consistent, thorough conditioning. The no-tools-required hand crank makes it easy to tailor roll pressure to the crop without crawling under the machine with wrenches. The unique, over-center linkage momentarily relieves roll pressure, allowing crop slugs or foreign objects to pass without plugging for non-stop mowing.
LEANINGEDGE™ FLAILSFor fast drying of grass hay, choose New Holland LeaningEdge flail conditioning. The 20-degree tangent of LeaningEdge flails creates more outward pressure, pushing crop against the adjustable conditioning hood for more thorough conditioning. The semi-swinging design ensures crop is released at the ideal moment to form uniform, fast-drying swaths or windrows. For lighter conditioning of delicate crops, raise the hood away from the flails. Or, for maximum conditioning, lower the hood to increase the crop friction. An optional textured hood liner offers even more aggressive conditioning of difficult crops. For more delicate handling of legumes and delicate grasses, an optional slow-speed kit is also available for the LeaningEdge flail conditioning system.
