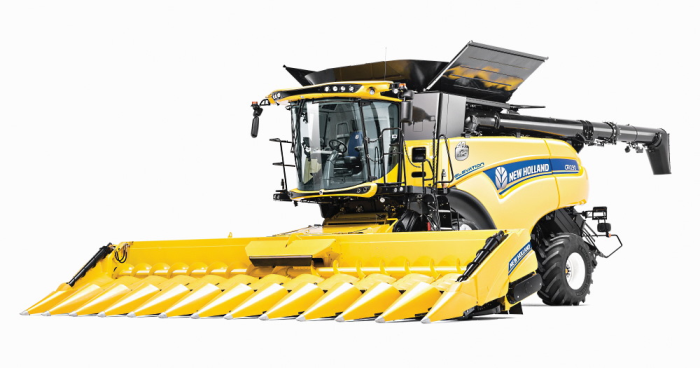

CR Revelation Combines
New Holland Combines - CR Revelation Series
THE WORLD’S HIGHEST CAPACITY COMBINE
CR Revelation combines break records in capacity and performance and provide you with a higher return on investment. They help you achieve higher efficiency and productivity using innovations like the award-winning IntelliSense™ combine automation system, Dynamic Flow Control™ remotely adjustable rotor vanes, deep cut Dynamic Feed Roll™ technology and patented Opti-Spread™ Plus super-wide residue spreading.
FACT: STILL THE UNDISPUTED WORLD RECORD HOLDER, AND IMPROVING ALL THE TIME
The top-of-the-line CR10.90 Revelation is the most powerful and productive CR combine to date, with up to 700 horsepower on tap and leading-edge systems that place it as the most advanced in the world. On August 15, 2014, the New Holland CR10.90 harvested 29,308 bushels of wheat in less than eight hours, obliterating the previous harvesting record. The CR10.90 achieved peak capacity of 4,960 bushels/hour in real world conditions, a truly unbelievable feat.
INTELLISENSE™: THE SIXTH SENSE IN HARVESTING
Every 20 seconds, the new IntelliSense™ combine automation system selects the best action out of 280 million possibilities. As conditions change, the system reacts quickly and smoothly to maximize throughput and minimize grain damage and losses.
ON-THE-GO ROTOR VANE ADJUSTMENT
Adjustable Dynamic Flow Control™ rotor vanes mean you can change their position on the go in response to changing crop conditions for up to a 20% increase in productivity and fuel savings with adjustable rotor vanes. The deep-cut Dynamic Feed Roll™ (standard on the CR10.90 and optional on all other models), with integrated dynamic stone protection, regulates crop flow into the machine to facilitate smoother threshing and increased capacity.
EXCEPTIONAL CLEANING CAPACITY WITH OPTI-CLEAN™ SYSTEM
For the highest cleaning capacity in small grain crops such as canola, the Opti-Clean™ system features a grain pan, pre- and top sieves that operate independently to optimize the cascade for greater capacity. The longer sieve stroke and steep throwing angle keep more material airborne, for even higher cleaning efficiency. The opposing motion of the grain pan and bottom sieve to the pre-sieve and the top sieve reduces overall machine vibrations and increases operator comfort.
|Grain Tank Capacity, bushels||315||315||410||410||410||410|
|Rated Engine Power @ 2100 rpm||374 hp||420 hp||496 hp||496 hp||544 hp||639 hp|
|Maximum Engine Power @ 2000 rpm||415 hp||460 hp||571 hp||544 hp||600 hp||700 hp|
Click on the "Files" tab to download the full Spec Sheet
