Bradco General Purpose Buckets
Part #: Bradco-GPBucket
Bradco General Purpose Buckets for Skid Steer Loaders are available in many styles, sizes and patterns to fit any need.
Details
Bradco General Purpose Buckets

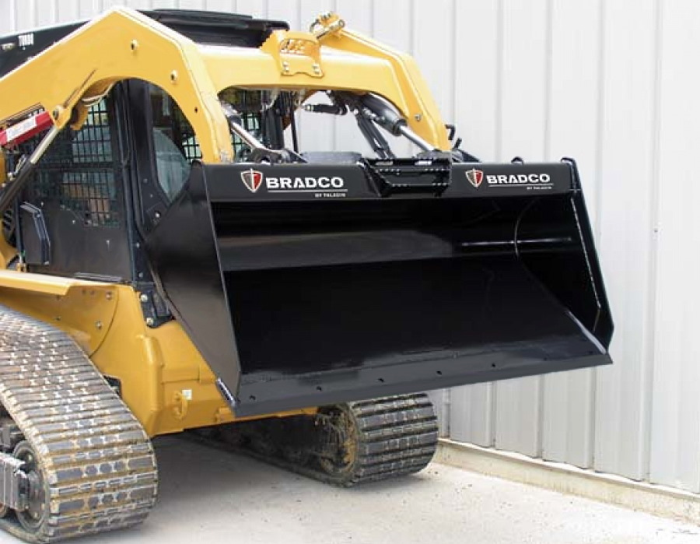

Heavy Duty High Capacity Bucket
- 75", 80" & 84" with 1" cutting edge and back drag plating for strength and protection from wear
- Optional bolt-on wear edge
- Optional bolt-on side cutters
- Strong box sections across the top, heel, and front edge
- High tensile side plates to support greater break out force
- Used for nursery applications, snow removal, & construction
- All bucket sizes available with H&L 23 series weld-on shanks and side pin teeth

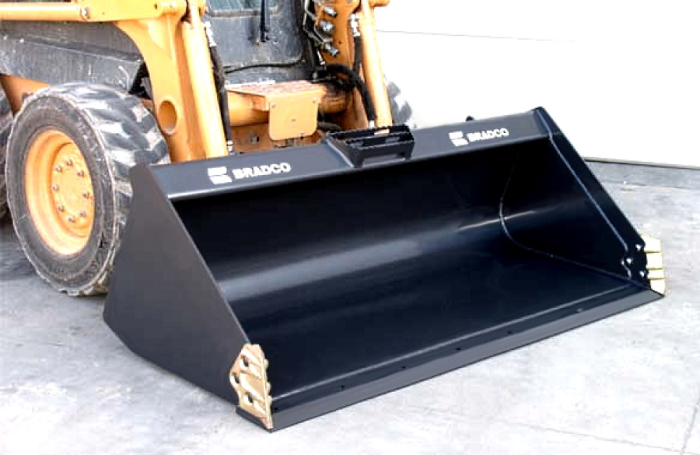

High Capacity Light Material Bucket
- 3/4" x 6" high carbon, beveled cutting edge
- Optional bolt-on wear edge
- Rolled inside surface for easier material clean out
- Fully integrated torque box design coupled with high tensile steel side profile cutter edges provide more load handling capacity
- Wear plating across bottom to prevent damage on bucket floor
- Forward swept top wrap to better contain wet or loose materials
- Heavy gage bucket wrap material

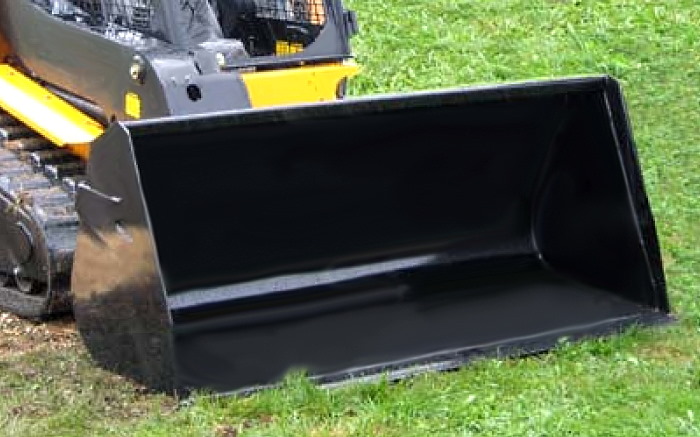

Low Profile Dirt Bucket
- 30" standard floor buckets for more severe conditions when break out force is required
- 36" long floor buckets for better visibility, productivity & cutting grade
- Heavy edges 1" for 78" width and above 3/4" for less than 78"
- Optional bolt-on wear edge
- Optional bolt-on side cutters
- Strong box sections and full wear strips for better bottom protection
- High tensile side cutters tie into the front edge for better support
- All bucket sizes available with H&L 23 series weld-on shanks and side pin teeth
| Heavy-Duty High Capacity | High Capacity, Light Material | ||||
| Width | 75" | 80" | 84" | 84" | 96" |
| Overall Height | 25" | 25" | 25" | 35" | 35" |
| Overall Depth | 38" | 38" | 38" | 41" | 41" |
| Rollback Angle | 20° | 20° | 20° | 20° | 20° |
| Cutter Edge Thickness | 1" | 1" | 1" | 3/4" | 3/4" |
| Heaped Capacity | 23 cu.ft. | 25 cu.ft. | 27 cu.ft. | 45 cu.ft. | 54 cu.ft. |
| Low Profile Dirt | |||||||
| Width | 60" | 63" | 66" | 72" | 78" | 82" | 84" |
| Overall Height | 20" | 20" | 20" | 20" | 20" | 20" | 20" |
| Overall Depth | 32" | 32" | 32" | 32" | 32" | 32" | 32" |
| Rollback Angle | 20° | 20° | 20° | 20° | 20° | 20° | 20° |
| Cutter Edge Thickness | 3/4" | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" |
| Heaped Capacity Standard Floor | 12 cu.ft. | 13 cu.ft. | 14 cu.ft. | 15 cu.ft. | 16 cu.ft. | 17 cu.ft. | 18 cu.ft. |
| Heaped Capacity Long Floor | 16 cu.ft. | 17 cu.ft. | 18 cu.ft. | 20 cu.ft. | 21 cu.ft. | 22 cu.ft. | -- |
 |
|
