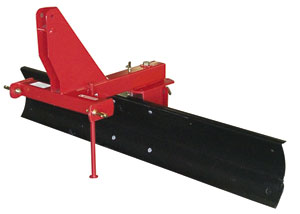

Worksaver Rear Blades

Part #: Worksaver-RB
Worksaver offers 7 models of rear mounted blades in widths of 6 and 7 feet.
Details

Worksaver Rear Blades

MCRB Series

An economical 6-ft. blade for tractors up to 35 hp, with Cat. I 3-pt. hitch. The MCRB-72 only offers mechanical angle adjustment. The main frame is formed with 3" x 2.5" channel; replaceable straps are used for the A-frame. The formed moldboard includes a 6" reversible cutting edge.

RB Series

Designed for Cat. I or Cat. I Quick Hitch these standard duty blades are ideal for the small acreage owner. The main frame consist of an all welded mast and 3" x 3" square tubing. The RB-Series features mechanical angle adjustment. Angle adjustment is done by simply removing a pin, angling the blade and reinstalling the pin. All models have a reversible cutting edge and are supplied with a parking stand for convenient storage. Available as an option are skid shoes to assist in cutting height adjustment to reduce the chance of surface damage during snow removal.

RBHD Series

Designed for Cat. I or Cat. I Quick Hitch these heavy-duty models have the strength required to handle the tough jobs. The main frame consist of an all welded mast and 4" x 4" square tubing. The RBHD-Series features mechanical offset and angle adjustment. Angle adjustment is done by simply removing a pin, angling the blade and reinstalling the pin. The RBHD-6-T and RBHD-7-T utilize a 3-position tilt assembly that is easy to use. All models have a reversible cutting edge and are supplied with a parking stand for convenient storage. Available options are skid shoes to assist in cutting height adjustment to reduce the chance of surface damage during snow removal. Optional end plates provide a boxed area for grading.



 Model MCRB-72 RB-1272 RB-1284 RBHD-6 RBHD-7 RBHD-6-T RBHD-7-T
 Maximum Horsepower 35 hp 40 hp 40 hp 50 hp 50 hp 50 hp 50 hp
 Frame Size 3" x 2.5" 3" x 3" 3" x 3" 4" x 4" 4" x 4" 4" x 4" 4" x 4"
 A-Frame Bolted Straps Welded Mast Welded Mast Welded Mast
 3-Pt Hitch Cat. I Cat. I Cat. I Cat. I Cat. I Cat. I Cat. I
 Moldboard Width 6' 6' 7' 6' 7' 6' 7'
 Moldboard Height 12" 12" 12" 14" 14" v v
 Moldboard Thickness 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4"
 Weight 186 lbs 190 lbs 206 lbs 275 lbs 300 lbs 306 lbs 331 lbs
 Cutting Edge 6" Reversible 6" Reversible 6" Reversible 6" Reversible
 Angle / Pivot 360° 360° 360° 360°
 Angle, Forward 0°, 15°, 30° 0°, 15°, 30° 0°, 15°, 30° 0°, 15°, 30°
 Angle, Reverse 0°, 15° 0°, 15° 0°, 15° 0°, 15°
 Offset -- -- 12" R/L 12" R/L
 Tilt -- -- -- 3-position
