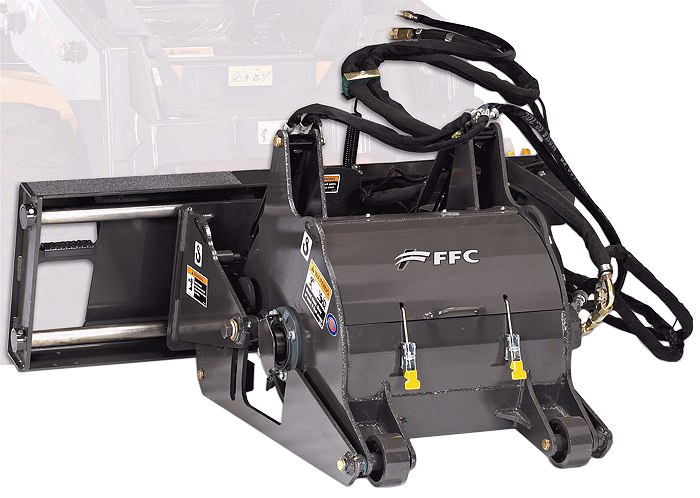

FFC Cold Planer

Part #: FFC Cold Planer
High-flow models feature planetary gearbox drive for increased torque and durability
Details
  • CAD-optimized bit pattern delivers more horsepower per bit for faster cuts
  • In-cab fingertip controls operate sideshift, tilt and cutting depth for high-flow models
  • Sideshifts 24" left or right to cut next to curbs and obstacles
  • High-flow models feature planetary gearbox drive for increased torque and durability
  • Large access door provides easier bit maintenance
Cutting
Width
Cutting
Depth
Tilt Side-
shift
Approx.
Weight
PSI
Range
GPM
Range
Standard-Flow
12" 0-5" ±15° 24" 1033 lbs 2200-3400 13-25
16" 0-5" ±15° 24" 1116 lbs 2200-3400 16-25
High-Flow
16" 0-6" ±15° 24" 1708 lbs 2200-5000 24-45
18" 0-6" ±15° 24" 1763 lbs 2200-5000 26-45
20" 0-6" ±15° 24" 1818 lbs 2200-5000 26-45
24" 0-6" ±15° 24" 1925 lbs 2200-5000 28-45
30" 0-6" ±12.5° 24" 2134 lbs 2200-5000 28-45
36" 0-6" ±10° 24" 2235 lbs 2200-5000 31-45
