Sweepster QCSS Angle Brooms

Part #: QCSS

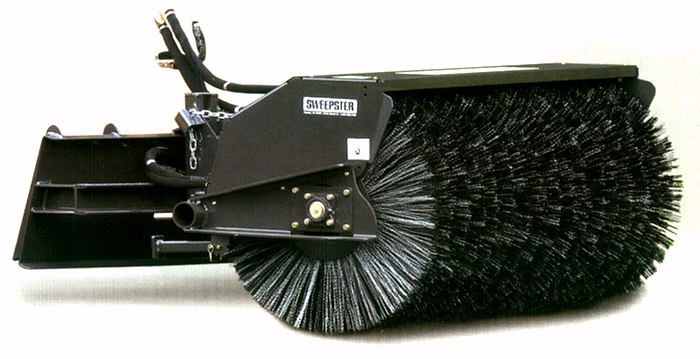

The QC Angle Broom from Sweepster features a Quick Change Core. The brush drive slips easily out of the core without removing hydraulic lines from the wheel motor(s).
Details
The QC Angle Broom from Sweepster features a Quick Change Core. The brush drive slips easily out of the core without removing hydraulic lines from the wheel motor(s). The brush core is reversible from end to end for even brush wear. Choose from poly, wire or poly/wire combination brushes.

  • No hydraulic line breakage when changing core
  • Modular Design - can easily change single into dual, vice versa
  • Hex Drive System - replaceable
  • Quick Change Core
  • New faceted hood
Sweeping
Width
Overall
Width
Width @
30° Angle
Motor(s) GPM Range Weight
60" 70½" 54" single - 18 in³ 10-18 gpm 793 lbs
single - 24 in³ 12-25 gpm 793 lbs
dual - 18 in³ 18-36 gpm 829 lbs
72" 82½" 64" single - 18 in³ 10-18 gpm 852 lbs
single - 24 in³ 12-25 gpm 852 lbs
dual - 18 in³ 18-36 gpm 890 lbs
84" 94½" 75" single - 18 in³ 10-18 gpm 915 lbs
single - 24 in³ 12-25 gpm 915 lbs
dual - 18 in³ 18-36 gpm 953 lbs
96" 106½" 85" single - 24 in³ 12-25 gpm 982 lbs
dual - 18 in³ 18-36 gpm 1022 lbs
