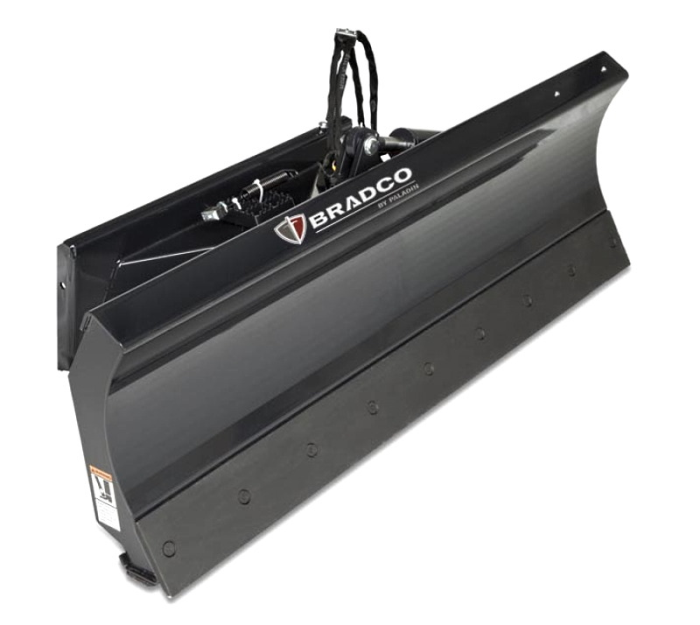

Bradco Dozer Blades

Part #: Dozer Blade
Universal Skid Steer Quick Attach Mount
Details
  • 84" or 96" Widths
  • Standard Skid Shoe
  • Universal Skid Steer Quick Attach Mount
  • Hydro-Electric Controlled Angle and Tilt
  • Tilt Indicator Visible From Operator's Seat
  • Optional Electrical Control Box
Specs 84" 96"
A. Width from Centerline to Inside Edge
      @ 15° Angle 43.53" 49.31"
      @ 30° Angle 42.19" 47.38"
B. Blade Width
      @ 15° Angle 81.13" 92.73"
      @ 30° Angle 73.13" 83.56"
C. Width from Centerline to Outside Edge
      @ 15° Angle 37.63" 43.41"
      @ 30° Angle 30.94" 36.16"
D. Overall Width 84" 96"
E. Angle Left & Right 30° 30°
F. Overall Length 36.68" 36.68"
Overall Height 29.89" 29.89"
